Rof Electro-optic modulator 1550nm LiNbO3 Intensity Modulator 50G

Kufotokozera Kwachidule:

LiNbO3 intensity modulator imagwiritsidwa ntchito kwambiri pamakina olumikizirana othamanga kwambiri, ma laser sensing ndi makina a ROF chifukwa chakuchita bwino kwa electro-optic. Mndandanda wa R-AM wotengera kapangidwe ka MZ kankha-chikoka ndi kapangidwe ka X-kudula, uli ndi mawonekedwe okhazikika athupi ndi mankhwala, omwe angagwiritsidwe ntchito poyesera ma labotale ndi machitidwe a mafakitale.

Titumizireni imelo KOPERANI

Tsatanetsatane wa Zamalonda

Rofea Optoelectronics amapereka zinthu za Optical ndi photonics Electro-optic modulators

Zolemba Zamalonda

Mbali

* Kutayika kochepa kolowetsa
* Bandwidth yayikulu
* Low theka-wave voltage
* Njira yosinthira mwamakonda

Electro-optic modulator Electro-optical modulator LiNbO3 intensity modulator MZM Modulator Mach-Zehnder Modulator LiNbO3 modulator Lithium niobate modulator

Kugwiritsa ntchito

⚫ machitidwe a ROF
⚫ Kugawa makiyi a Quantum
⚫ Makina owonera laser
⚫ Kusintha kwa gulu la mbali

Rof-AM Series	Rof-AM-07	Rof-AM-08	Rof-AM-10	Rof-AM-13	Rof-AM-15
Kutalika kwa mafunde	780nm pa	850nm pa	1064nm	1310 nm	1550nm
Bandwidth	10 GHz	10 GHz	10/20GHz	2.5 GHz	50GHz	10 GHz	20 GHz	40 GHz
Kutayika Kwawo	＜5dB	＜5dB	＜5dB pa	＜5dB pa	＜4dB pa
Extinction ratio @DC	＞20dB pa	＞20dB pa	＞20dB pa	＞20dB pa	＞20dB pa
V_Π@RF (1KHz)	＜3V	＜3V	＜4V	<3.5V	＜6V	<5V
V_Π@Kukonda	＜3.5V	＜3.5V	＜5V	<5V	<8v	<7v

Kuyitanitsa Zambiri

Rof

XXG

Mtundu: AM---Intensity Modulator

Kutalika: 07--780nm
08--850nm

10---1060nm

13---1310nm

15---1550nm

Bandwidth: 10GHz

20 GHz

40 GHz

50 GHz

Monitor PD:PD---Ndi PD
00 --- Palibe PD

Mtundu wa Fiber wamkati: PP---PM/PM

Cholumikizira cha kuwala: FA---FC/APC

FP---FC/PC

SP--- Kusintha mwamakonda

R-AM-15-50G

Wavalength 1550nm 50GHz Intensity modulator

Parameter				Chizindikiro		Min	Lembani	Max	Chigawo
Optical magawo
Kutalika kwa mafunde				l		1530	1550	1565	nm
Kutayika kolowetsa				IL			4	5	dB
Optical kubwerera kutayika				ORL				-45	dB
Kusintha kwa chiŵerengero cha kutha kwa @DC				ER@DC		20	23	45	dB
Chiŵerengero cha kutha kwamphamvu				DER			13		dB
Optic fiber	Zolowetsadoko					Panda PM Fujikura SM
	port port					Panda PM Fujikura SM
Optic fiber mawonekedwe						FC/PC,FC/APC Kapena wosuta kuti afotokoze
Magetsi magawo
bandwidth yogwira ntchito(-3dB）					S₂₁	35	40		GHz
Half-wave voltage Vpi		RF			@50KHz		5	6	V
		Kukondera			@Kukonda		7	8	V
Kutayika kwamagetsi kubwerera					S₁₁		-12	-10	dB
Kulowetsedwa kwa impedance			RF		Z_RF	50			W
			Kukondera		Z_ZABWINO	1M			W
Mawonekedwe amagetsi						V(f)

Malire Zikhalidwe

Parameter	Chizindikiro	Chigawo	Min	Lembani	Max
Lowetsani mphamvu ya kuwala	P_{mu, max}	dBm			20
Lowetsani mphamvu ya RF		dBm			28
bias voltage	Vbias	V	-15		15
Kutentha kwa ntchito	Pamwamba	℃	-10		60
Kutentha kosungirako	Tst	℃	-40		85
Chinyezi	RH	%	5		90

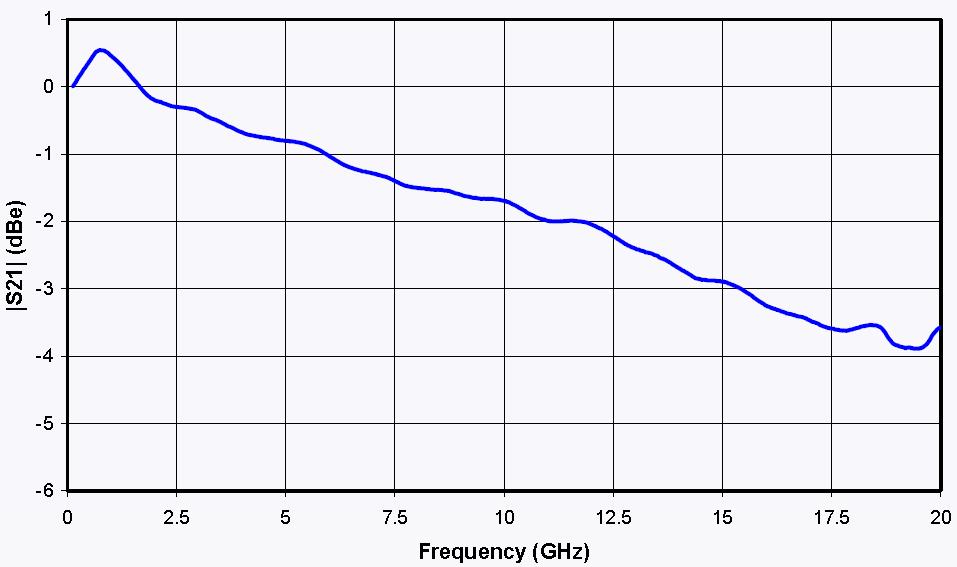

S21 Mpoto

&S11 Curve

S21 & s11 zokhotakhota

Mechanical Chithunzi

PORT	Chizindikiro	Zindikirani
Mu	Doko lolowera la Optical	PM Fiber (125μm/250μm)
Kutuluka	Optical linanena bungwe port	PM ndi SMF njira
RF	Doko lolowera la RF	SMA (f)
Kukondera	Bias control port	1,2 Kukondera, 34-N/C
